Good at Vibrating object measurement , restore object actual status
F2030-K is based on the principle of laser diffraction (Fresnel diffraction), with a simple structure that can provide stable and accurate measurements for a long service time.
It is the best choice of vibrating and fast wire speed production line.
F2030-k is highly adaptable and suitable for diverse materials, like electric wire and cable, steel wire, 3D filament,especailly the object with high ovality measurement requirement.
Single axis sampling frequency of 5KHz
Thanks to no running parts, the sampling frequency can reach to 5KHz ,which enables to get more information of the object under measurement.
Measurement is accurate even on vibrating object
Extremely short exposure time, capable of capturing object image without any blur shadow,promising accurate measurement.
Applications
Touch Screen,Computer,Cellphone

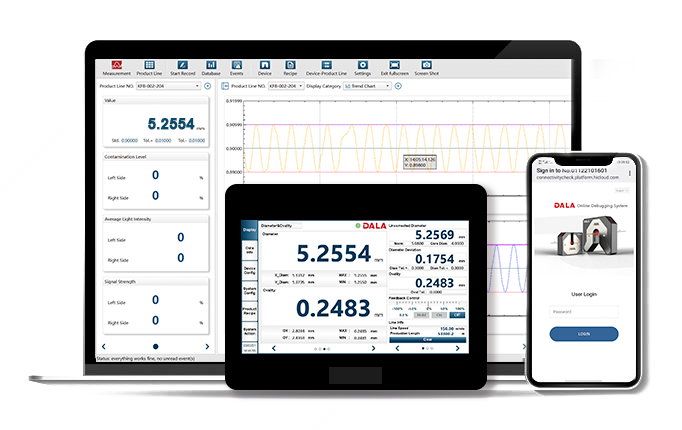

DALA F2030-K can be controlled by computer software ,cellphone and touch screen,like parameter setting ,measurement data management ,and so on,customers can choose as their application request.
Technical Specification
| Model | F2030-K |
| Axis | 2-axis |
| Measurement data | diameter and ovality, lump and necks |
| Frequency | 5KHz/axis |
| Measurement range | 0.5~30mm |
| Repeatability(1) | ±0.2μm |
| Accuracy(2) | ±(0.001+0.01%*D)mm |
| Min defect height | 0.01mm |
| Min defect length(3) | 0.4mm(wire speed120m/min)
1.6mm(wire speed500m/min) |
| Size | 280*245*58mm |
| Working power source | 24V ±10% 40VA |
| Running temperature | 5℃~50℃ |
| Display | LED display |
| Commuincation port | Standard:WIFI,RS485 MODBUS RTU,CAN
Option:PROFIBUS,PROFINET, EtherNet/IP,EtherCAT |
| Electrical port | Standard: digital output(relay),digital input,analog input,encoder pulse input port
Option:PI feedback control (4) |
| Data colletion & analysis | available (option DS14 ZT display and control system,DMS1000) |
| Out-of-tolerance alarm | available |
| Transparent mode | available |
Note:
(1) set sliding window as 100ms, outside diameter repeatability of φ1mm round rod at measurement center area
(2) set sliding window as 100ms, outside diameter deviation of φ1mm round rod at measurement area
(3)set defect measurement average time as 0ms, the minimum defect length which cannot be missed at the measurable area
(4)PI feedback control is option, but must order at placing order
